almost as much audio electronics

as you can fit

in a box.

Tshen2 2015

a conjoining of custom & ready-made.

a careful use of space.

Tshen2 2015

sometimes you want to wirelessly transmit 24-bit lossless audio.

sometimes you have $12.

there's a video too.

Tshen2 2014

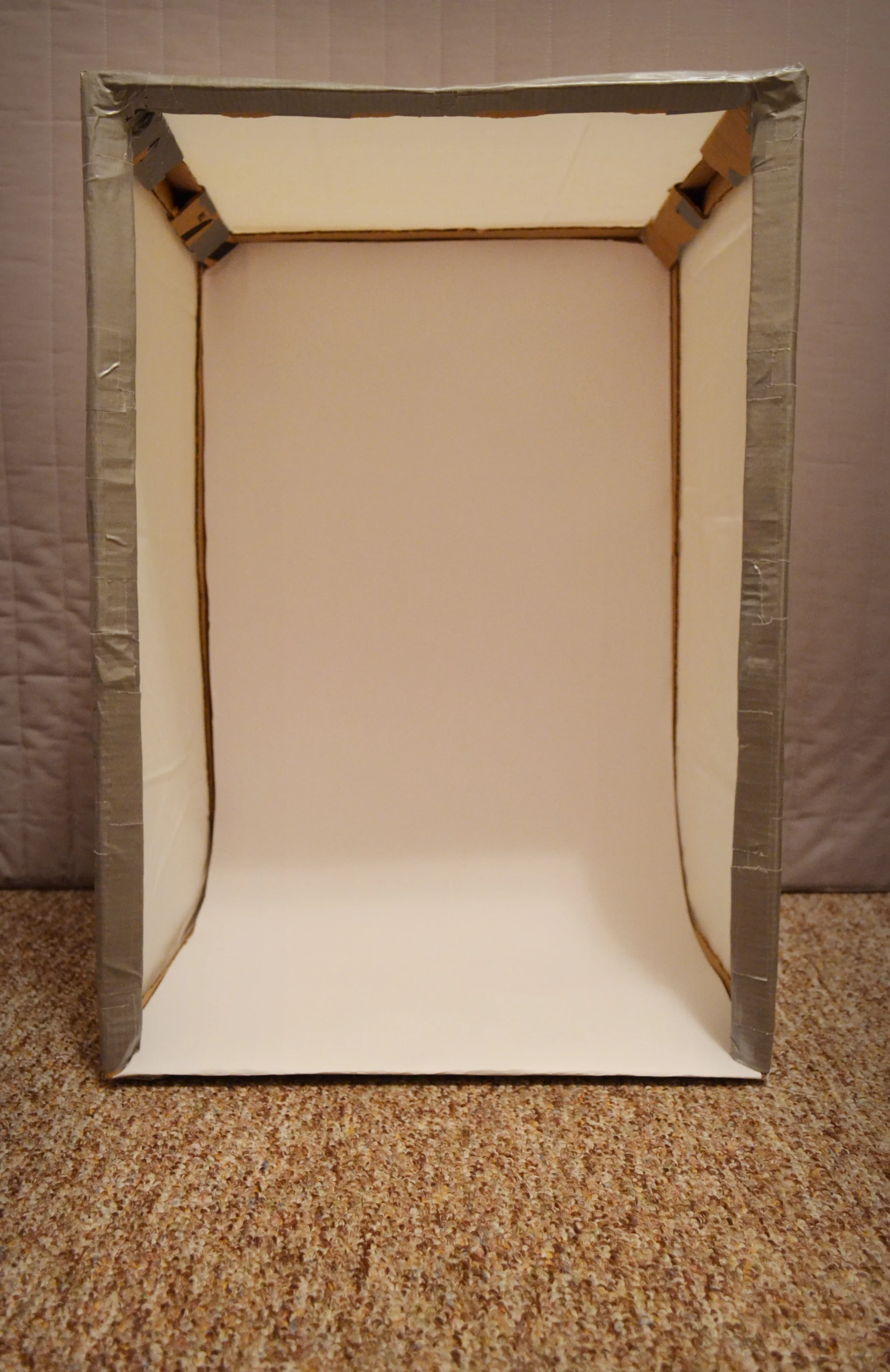

it is not a cardboard box

nor a pillowcase.

Tshen2 2014

when you wish to cup your circuit board in loving precision

only lasers will do.

Tshen2 2014

relays dream

cretaceous dreams.

Tshen2 2014

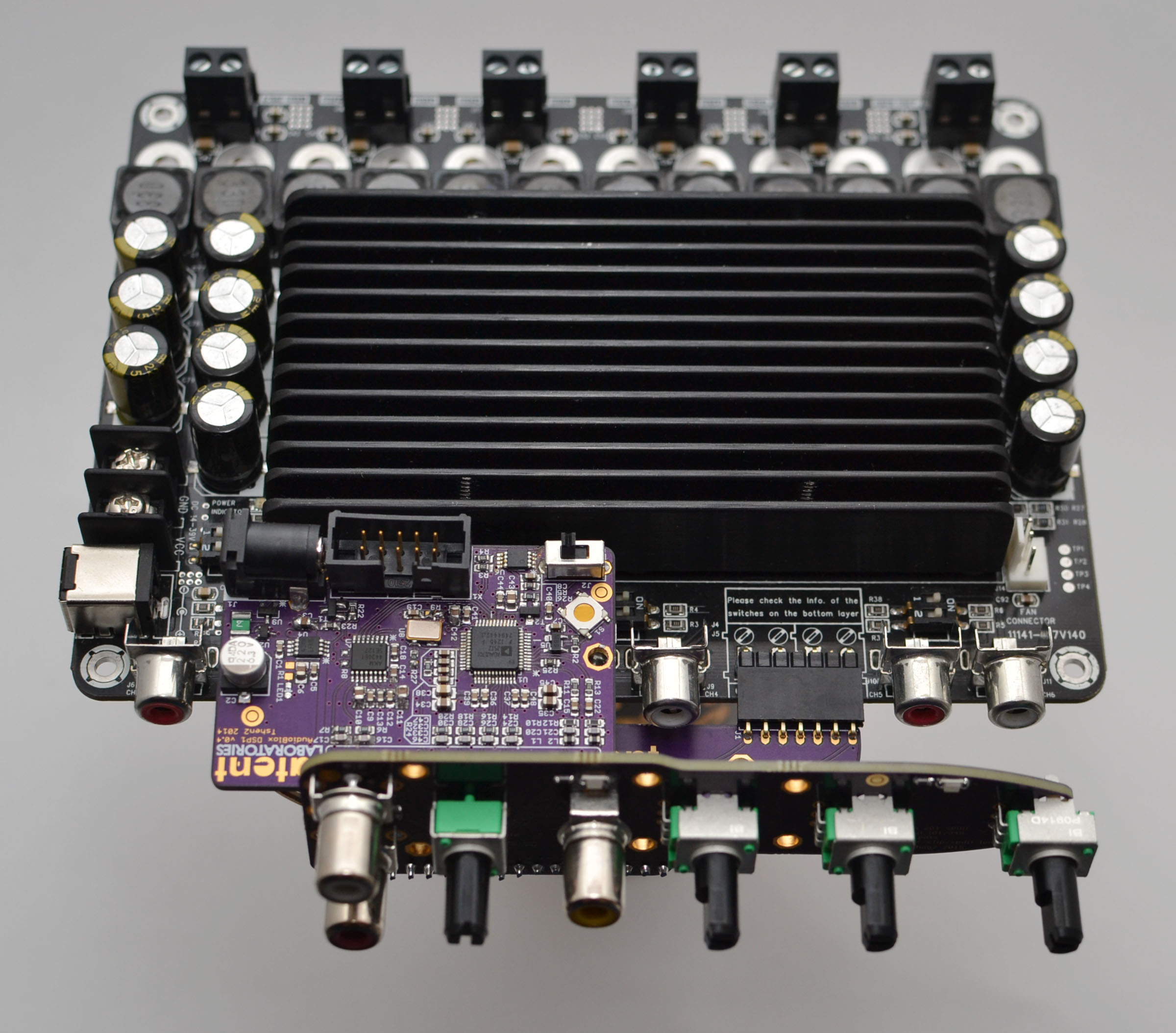

digital signal processor

for 2.1 biamped speakers & sub.

six outputs total

integrated 4x100W amplifier

lasercut acrylic case.

Tshen2 2014

digital signal processor

via & acrylic spacer

form a banana jack.

Tshen2 2014

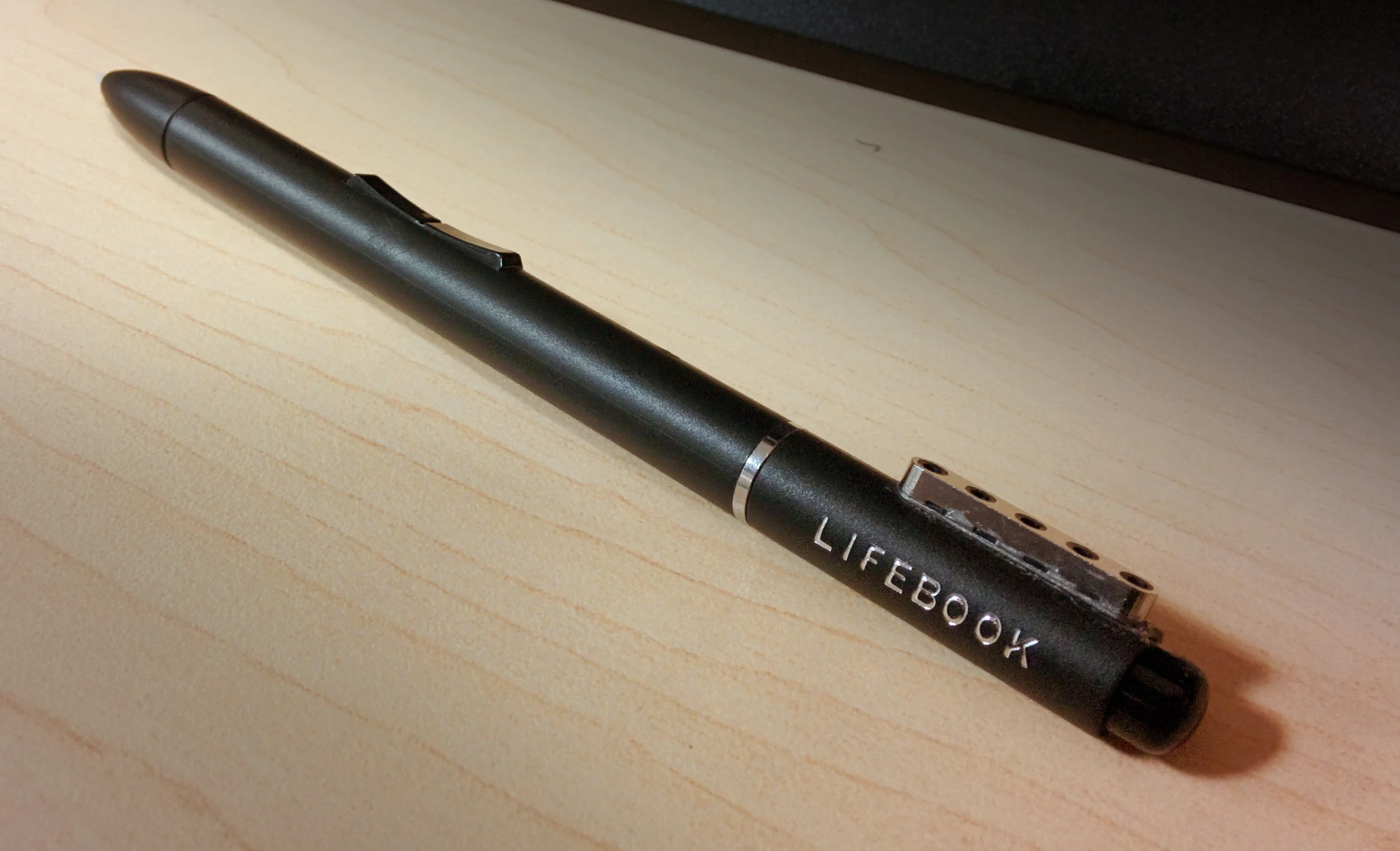

does it clip on?

(yes)

Tshen2 2014

tiny ENA

workin' hard

gettin' no love.

Tshen2 2014

13" Retina-class screen

bare LCD panel hacked to work with a desktop computer

acrylic/plywood/acrylic lasercut enclosure

1/4-20 tripod-mount on a boom-arm.

Tshen2 2014

control board for the Megapixy project.

Displayport to eDP connectors

8-channel 38V backlight driver

hybrid PWM/PFM brightness control.

Tshen2 2014

13" Retina-class screen

is only useful in front of you.

i love 1/4-20 tripod mounts.

Tshen2 2014

modular analog signal processing blocks for hi-fidelity audio.

standardized, shared signal and power bus.

made obsolete by dsp.

Tshen2 2014

3:2 aspect ratio

uses Displayport

like the Megapixy itself.

Tshen2 2014

analog signal processor

for 2.1 biamped speakers & sub.

made obsolete by dsp.

Tshen2 2013

analog signal processor

for 2.1 biamped speakers & sub.

made obsolete by dsp.

Tshen2 2013

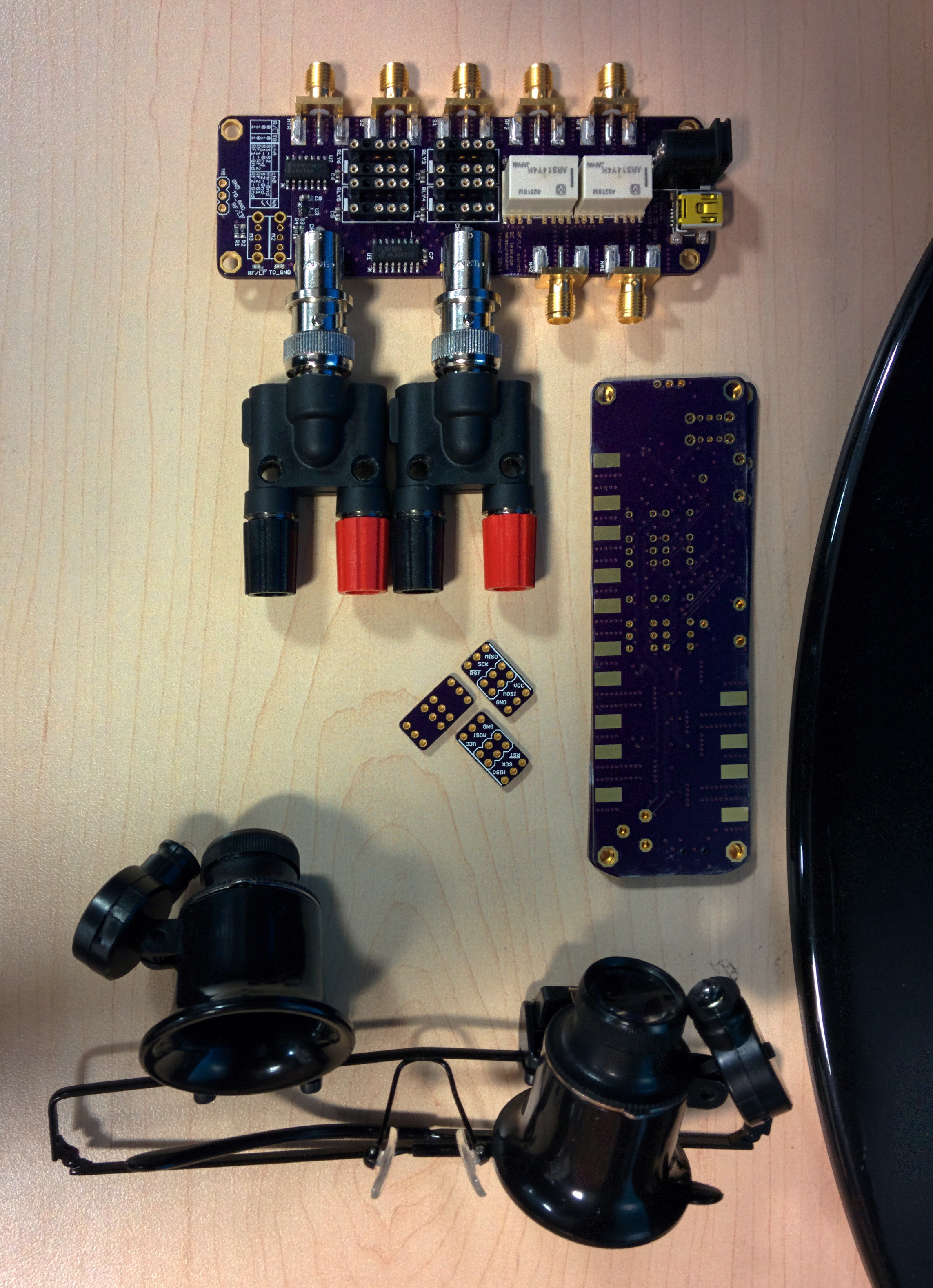

deconstructed circuit board.

Tshen2 2013

messy underside of analog crossover circuit.

made obsolete by dsp.

Tshen2 2012

the joy of existence.

Tshen2 2012

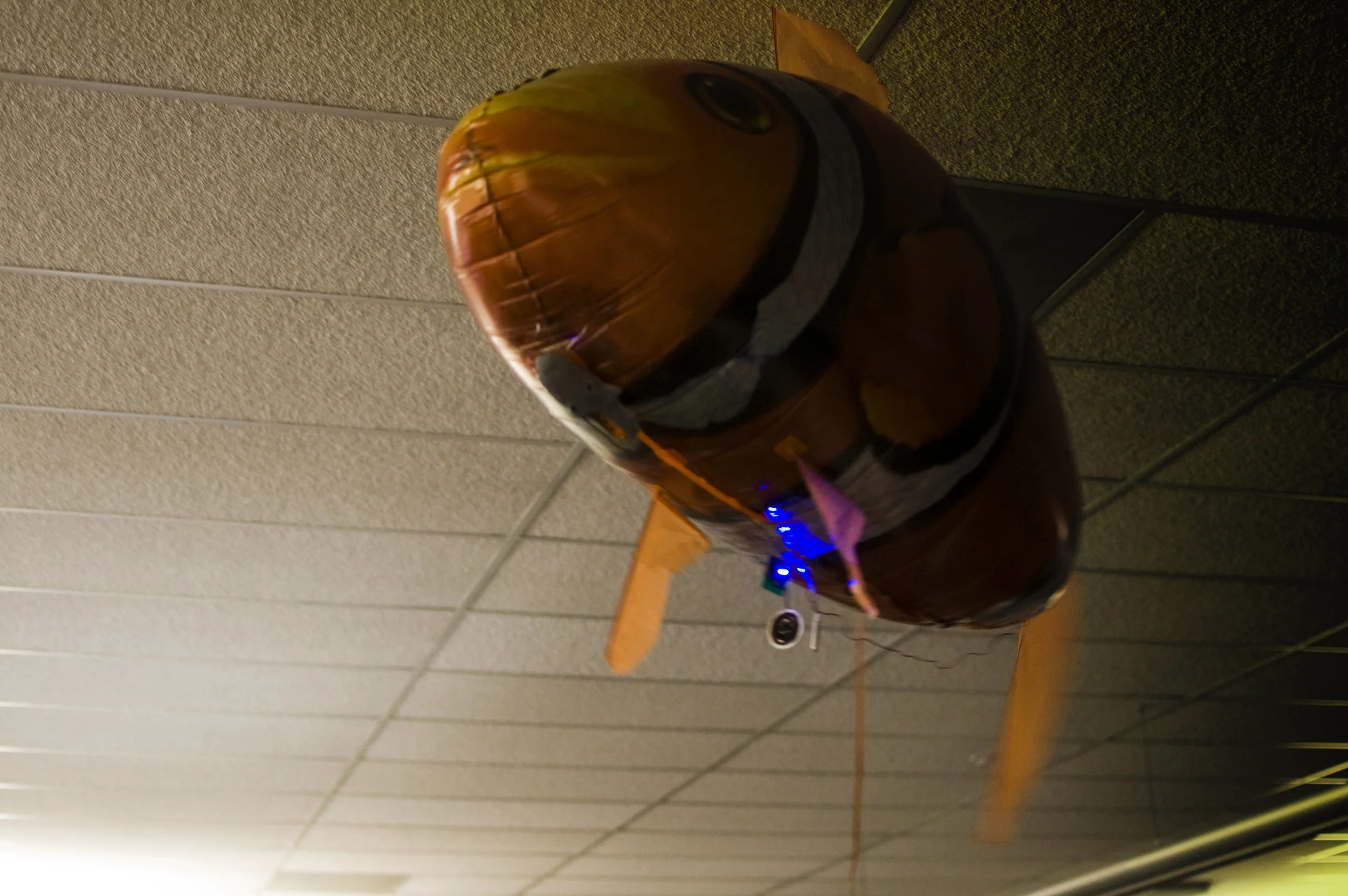

empty cubicles

fish sings via bluetooth.

Tshen2 2012

empty cubicles

fish sings via bluetooth.

Tshen2 2012

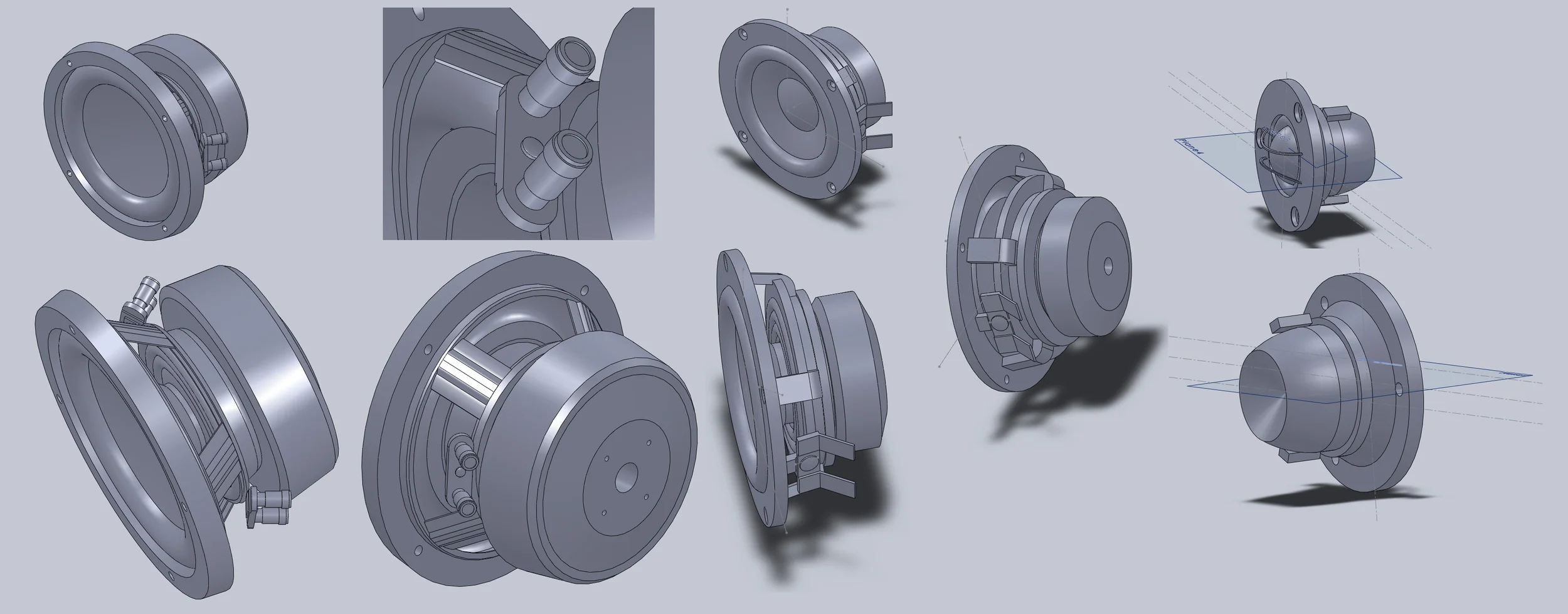

3D modelling

just for fun

because Solidworks.

Tshen2 2011

light emitting doodads.

Tshen2 2009
